Smart Dry Film Coating Thickness Gauges Thickness Coating Machine High Precision

Name: Smart Dry Film Coating Thickness Gauges Thickness Coating Machine High Precision
Brand: Lonroy
Price: 1 USD

Brand Name : Lonroy

Model Number : Quanix 8500

Certification : Includes Calibration Certification

Place of Origin : China

MOQ : 1

Price : Negotaible

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 200

Delivery Time : 5-8 work days

Packaging Details : wooden package

Dimensions : 124mm×67mm×33mm

Weight : 120g

Power Supply : 2 × 1.5V dry batteries

Warranty : 1 Year

Contact Now

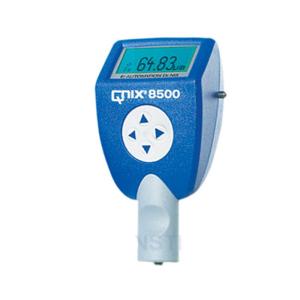

Quanix 8500 Dry Film Thickness Coating Machine Thickness Measurement Gages

1.Description

This is a smart, high-precision coating thickness gauge launched by German company Nix. With its flexible, detachable probe, it can be used as a split-type or integrated-type device. Additionally, by swapping probes, it can accommodate various measurement requirements, store data, and wirelessly transmit information to a computer. The probe can be directly connected to the main unit for integrated measurement or connected via a probe cable for split-type measurement. Split-type measurement is simple to operate and significantly reduces errors caused by misoperation.

The German Nix QNix 8500 coating thickness gauge has a universal main unit, with probes divided into magnetic probes (Fe iron-based), eddy current probes (NFe non-iron-based), and dual-purpose probes (Fe/NFe dual-purpose probes). The measurement ranges of the probes are 0-2mm and 0-5mm. Users should select the appropriate probe based on their needs when purchasing the product:
1. Options include standard integrated probes, wired split probes, and wireless split probes (supporting USB wireless bidirectional transmission)
2. Options include Fe iron-based, NFe non-iron-based, and Fe/NFe dual-purpose probes
3. Probe measurement ranges are available in 0-2000 μm or 0-5000 μm.

Additionally, it features the following characteristics:
* Innovative design for easy one-handed operation; durable housing suitable for field use
* Modular plug-in probe with safety lock
* Only requires zeroing, no calibration needed; simple user interface; customizable interface according to user needs
* User-friendly menu and intuitive button layout; flexible arrow keys
* Dual-color LED LCD display with backlight
* Measurement programs, data transmission, and adjustable tolerance ranges
* High-resolution graphical analysis functionality and high-precision data value reading
* Language selection via menu: Chinese or English
* Compatible with thin-film probes for precise measurement of extremely thin coatings, with an error margin of less than ±3 μm

2.Technical Parameter.

Measurement Accuracy	0-2000μm: ≤±2% 2000-5000μm: ≤±3%
Minimum Substrate Size	Fe: 10mm×10mm NFe: 6mm×6mm
Minimum Substrate Thickness	Fe: 0.2mm NFe: 0.05mm
Minimum Curvature	Convex radius: 5mm Concave radius: 30mm
Units Display	μm/mil (Metric/Imperial)
Display Resolution	0-99μm → 0.1μm 100μm-999μm → 1μm ≥1000μm → 0.01mm
Statistical Functions	AVG, MAX, MIN, STD DEV
Storage Capacity	1 data group / 30,000 measurements
Power Supply	2 × 1.5V dry batteries
Dimensions/Weight	124mm×67mm×33mm / 120g (including batteries & probe)
Data Transmission	RS232 wireless transmission (requires optional wireless probe) Max. 10m range (obstacle-free)
